Flexible Battery and Inverter Options for Different Home Energy Needs.
Choose from wall-mounted, rack-mounted, high-voltage, all-in-one and portable configurations--then match the battery, inverter and load requirements as one system.
- Chemistry
- LFP
- Cycle Life
- 6,000+
- Configurations
- 6 Types
Installation-First Design
Choose the Form Factor That Fits the Installation
Wall-Mounted
Saves floor space and supports clean residential installation with a compact vertical footprint.
Rack-Mounted
Organizes multiple modules in a structured enclosure and supports phased capacity expansion.
High-Voltage
Suitable for compatible higher-voltage inverter architectures with scalable series-parallel configurations.
Roller / Large Capacity
Easier to reposition for selected home and small commercial applications without fixed wall mounting.
All-in-One
Simplifies battery and inverter coordination in a single unit, reducing installation complexity.
Wall-Mounted & Rack-Mounted
Low-Voltage Battery Families
LFP chemistry across 25.6V, 48V and 51.2V platforms. All models include LCD display, CAN/RS485/RS232 communication and 6,000-cycle performance language. Confirm exact model specifications, current ratings, dimensions, IP ratings and certifications from the current datasheet before specifying.
25.6V Wall-Mounted
2.56 / 5.12 / ~5.89 kWh
- Voltage
- 25.6V
- Chemistry
- LFP
- Communication
- CAN / RS485 / RS232
- Cycle Life
- 6,000+
- Warranty
- 5 Years
48V Wall-Mounted
4.8 / 7.2 kWh
- Voltage
- 48V
- Chemistry
- LFP
- Communication
- CAN / RS485 / RS232
- Cycle Life
- 6,000+
- Warranty
- 5 Years
51.2V Wall-Mounted
5.12 / 10.24 / 11.776 kWh
- Voltage
- 51.2V
- Chemistry
- LFP
- Communication
- CAN / RS485 / RS232
- Cycle Life
- 6,000+
- Warranty
- 5 Years
Rack-Mounted
4.8 / 5.12 / 9.6 / 10.24 / 15.36 kWh
- Voltage
- 48-51.2V
- Chemistry
- LFP
- Communication
- CAN / RS485 / RS232
- Cycle Life
- 6,000+
- Warranty
- 5 Years
Publication note: Exact model numbers, rated current, physical dimensions, IP ratings and applicable certifications must be read from the current product datasheet. Do not use brochure summary figures as the sole basis for system specification.
Scalable & Mobile Platforms
High-Voltage & Large-Capacity Roller Batteries
Customizable, Scalable High-Voltage Platform
51.2V modules with system voltage scaling up to approximately 870V. Designed for compatible high-voltage inverter architectures. Confirm exact series and parallel configuration rules from the datasheet before system design.
- -- 51.2V nominal module voltage
- -- System voltage up to ~870V (confirm per datasheet)
- -- LFP chemistry, rack-mounted enclosure
- -- Scalable series/parallel -- verify exact model limits
Large Capacity. Easier Placement.
Approximately 15.36 kWh and 16.0768 kWh LFP / semi-solid configurations at 51.2V nominal voltage. Roller design enables repositioning for home and selected small commercial applications. Includes LCD display and communication for compatible system integration.
Confirm exact IP rating, dimensions, weight and communication compatibility from the current datasheet.
Power Conversion
All-in-One Systems & Inverters
From integrated all-in-one units to single and three-phase hybrid inverters. Match the inverter to your battery voltage, load profile and grid configuration. Always verify battery-inverter compatibility before ordering.
All-in-One Wall-Mounted
Integrated battery and inverter in a single wall-mounted unit.
- Power Range
- 5 kW
- Phase
- Single-Phase
- Battery
- Integrated
Off-Grid Inverter
Supports lead-acid and lithium battery configurations.
- Power Range
- 3.6 / 5 / 6.5 kW
- Phase
- Single-Phase
- Battery
- Lead-Acid / Lithium
HI Series Single-Phase Hybrid
48V battery platform, suitable for residential hybrid systems.
- Power Range
- 5 / 6 / 8 / 10 / 12 kW
- Phase
- Single-Phase
- Battery
- 48V Platform
- IP Rating
- IP65
HI Series Three-Phase Hybrid
48-52V battery range, suitable for larger residential and small commercial.
- Power Range
- 6 / 8 / 10 / 12 / 15 kW
- Phase
- Three-Phase
- Battery
- 48-52V Platform
- IP Rating
- IP66
Mobile & Portable
Portable and Lead-Acid Replacement Products
Drop-In LFP for Lead-Acid Applications
1.28 kWh and 2.56 kWh LFP options designed for applications currently using lead-acid batteries. Intended to improve cycle life and charging performance compared with traditional lead-acid use cases.

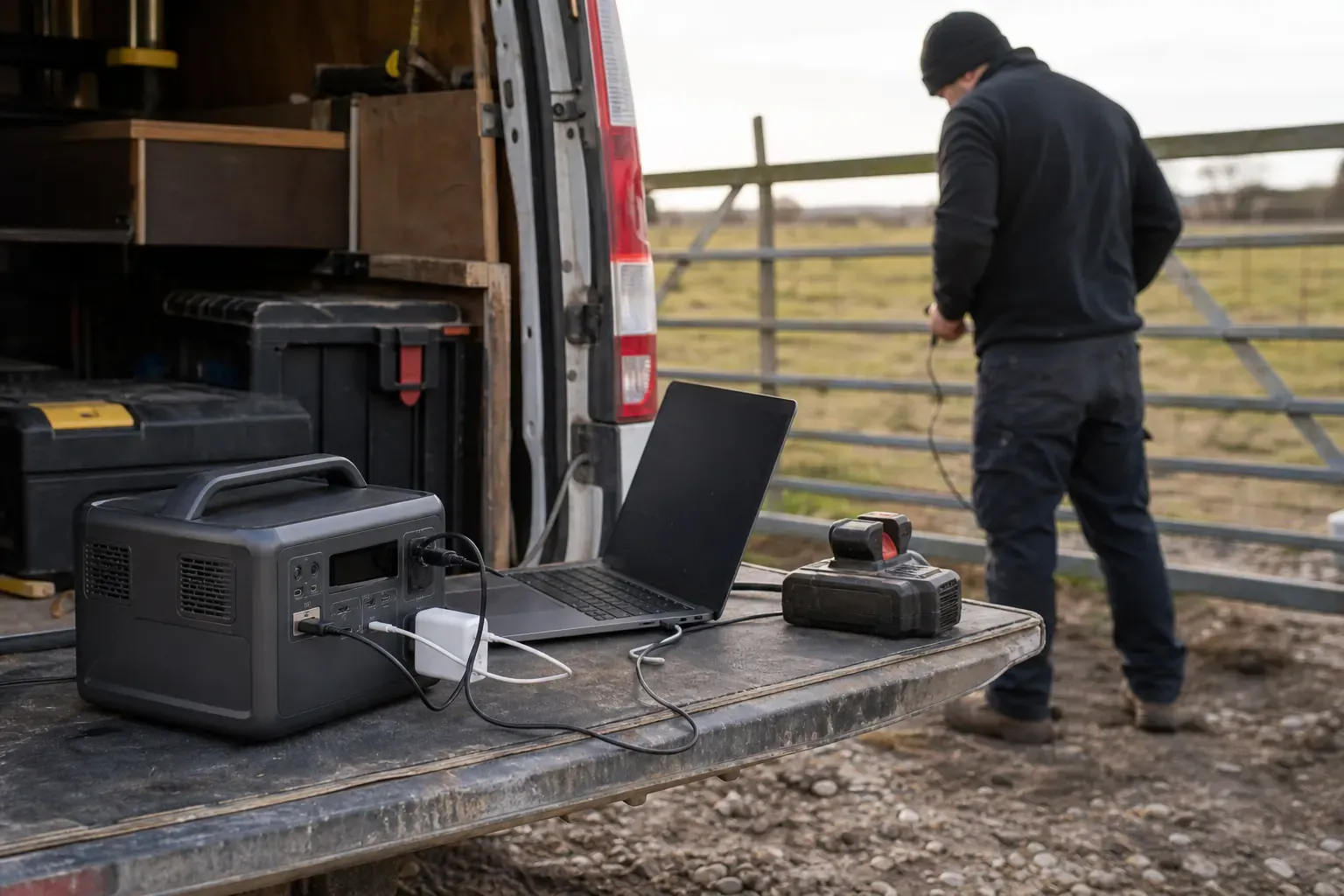

Portable Power Supply -- By Use Case
500W / 1 kWh for light backup and outdoor use. 1 kW / 2 kWh for extended appliance support. 1 kW / 4 kWh for longer off-grid or field operation. All units include AC output, PV input and USB ports.
Light backup, outdoor activities, short trips
Extended appliance support, small office backup
Longer off-grid operation, field and site use
Outputs include AC, PV input and USB. Confirm rated wattage, battery capacity and output specifications from the current datasheet.
System Matching Tool
Find the Right Configuration
Enter your key requirements below. Results show indicative product families--verify final selection against current datasheets and compatibility documentation.
| Product Family | Capacity | Voltage | Form Factor | Phase | Inverter Match | Certifications |
|---|---|---|---|---|---|---|
| 25.6V Wall-Mount 2.56kWh | 2.56 kWh | 25.6V | Wall-Mounted | Single | Single-phase hybrid / off-grid | IEC 62619, RoHS |
| 25.6V Wall-Mount 5.12kWh | 5.12 kWh | 25.6V | Wall-Mounted | Single | Single-phase hybrid / off-grid | IEC 62619, RoHS |
| 48V Wall-Mount 4.8kWh | 4.8 kWh | 48V | Wall-Mounted | Single | HI Series single-phase (48V) | IEC 62619, RoHS |
| 48V Wall-Mount 7.2kWh | 7.2 kWh | 48V | Wall-Mounted | Single | HI Series single-phase (48V) | IEC 62619, RoHS |
| 51.2V Wall-Mount 5.12kWh | 5.12 kWh | 51.2V | Wall-Mounted | Both | HI Series single/three-phase | IEC 62619, RoHS |
| 51.2V Wall-Mount 10.24kWh | 10.24 kWh | 51.2V | Wall-Mounted | Both | HI Series single/three-phase | IEC 62619, RoHS |
| Rack 4.8kWh | 4.8 kWh | 48V | Rack-Mounted | Single | HI Series single-phase (48V) | IEC 62619, RoHS |
| Rack 15.36kWh | 15.36 kWh | 51.2V | Rack-Mounted | Both | HI Series single/three-phase | IEC 62619, RoHS |
| HV Rack (51.2V modules) | Scalable | High-V | Rack-Mounted | Both | High-voltage compatible inverter | IEC 62619, RoHS |
| Roller ~15.36kWh | 15.36 kWh | 51.2V | Roller | Both | HI Series single/three-phase | IEC 62619, UN 38.3 |
| All-in-One 5kW/5.12kWh | 5.12 kWh | 48V | All-in-One | Single | Integrated | Confirm per datasheet |
| Portable 500W/1kWh | 1.0 kWh | -- | Portable | Single | Built-in | UN 38.3, RoHS |
| Portable 1kW/2kWh | 2.0 kWh | -- | Portable | Single | Built-in | UN 38.3, RoHS |
| Portable 1kW/4kWh | 4.0 kWh | -- | Portable | Single | Built-in | UN 38.3, RoHS |
All results are indicative. Verify exact specifications, compatibility and certifications against current product datasheets before ordering.
Safety & Compliance
Certifications & Warranty by Product
Certification scope applies to the specific product model tested. Do not assume a certificate from one model extends to the full product range. Confirm applicable certifications for each model from the current datasheet.
25.6V / 48V / 51.2V Wall-Mounted Batteries
- Chemistry
- LFP
- Cycle Life / Test Condition
- 6,000 cycles @ 80% DOD, 0.5C/0.5C, ≥80% SOH
- Warranty
- 5 Years
- IP Rating
- Confirm per datasheet
- Operating Temperature
- 0°C - 55°C (charge)
High-Voltage Rack-Mounted Battery
- Chemistry
- LFP
- Cycle Life / Test Condition
- Confirm per datasheet
- Warranty
- Confirm per datasheet
- IP Rating
- Confirm per datasheet
- Operating Temperature
- Confirm per datasheet
Large-Capacity Roller Battery
- Chemistry
- LFP / Semi-Solid
- Cycle Life / Test Condition
- Confirm per datasheet
- Warranty
- Confirm per datasheet
- IP Rating
- Confirm per datasheet
- Operating Temperature
- Confirm per datasheet
HI Series Hybrid Inverters
- Cycle Life / Test Condition
- --
- Warranty
- Confirm per datasheet
- IP Rating
- IP65 (single) / IP66 (three-phase)
- Operating Temperature
- Confirm per datasheet
Product & Installation Media
Product Images & Installation Views
Front, side, port detail, installation context, scale reference, internal module, packaging and operating interface views for each product category.
Technical & Commercial Questions
Frequently Asked Questions
Which inverter is compatible with MOLETONG batteries?
Can batteries be connected in parallel?
Can the battery be installed outdoors?
What does the cycle life rating mean?
Do you support distributors and installers?
What is the difference between the all-in-one and separate battery + inverter configurations?
Before You Order
Match the Battery, Inverter and Loads Before You Order.
Our team can help distributors, installers and end users verify compatibility, review datasheets and confirm the right system configuration for your project.
Home Product Catalog
Datasheets, brochures and specification documents for all home and portable energy products.
Compatibility Check
Tell us your inverter model, battery voltage and load requirements. We will confirm compatibility and flag any issues.
Project Matching
Describe your project: location, load profile, PV, backup needs and budget direction. We will recommend a matched system configuration.
Responses are typically within 1-2 business days. All product specifications are subject to the current datasheet and applicable local requirements.
